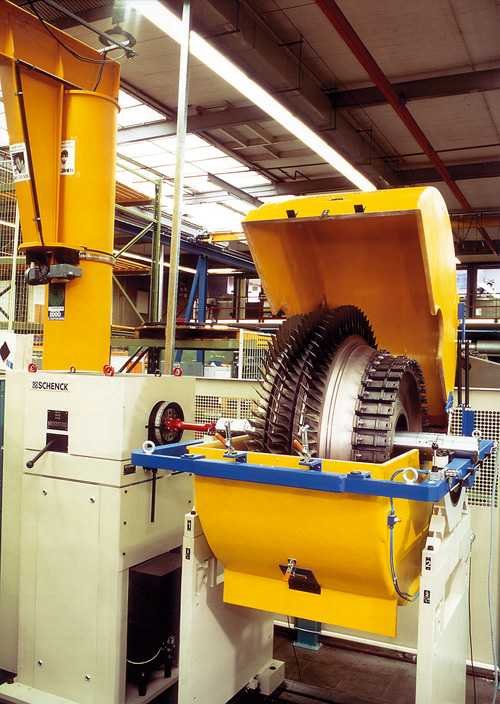

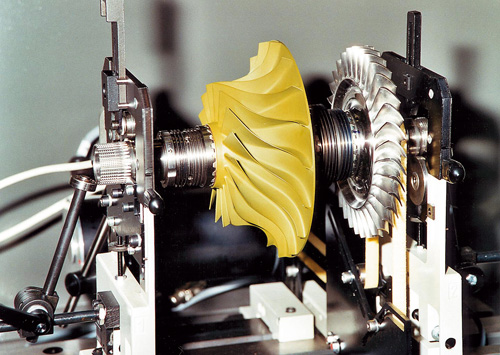

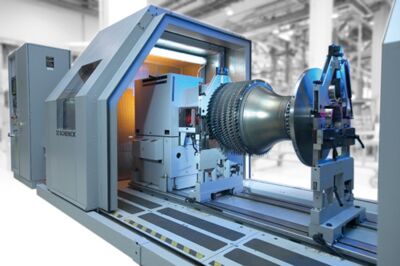

Technical data at a glance | HL 1 BU | HL 2 BU | HL 3 UB | HL 4 UB | HL 5 UB | HL 50 UB | HL 6 U | |
Measuring unit | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | |
End drive | • | • | • | • | • | |||
Belt drive | • | • | • | • | • | • | ||
SAE Mechine class 2) | [lb] | 30 | 100 | 300 | 1000 | 3000 | ||
Rotor | ||||||||
Weight | [kg] | 16 | 1 - 100 | 1,5 - 200 | 1,5 - 700 | 5 - 1400 | 20 - 2800 | 50 - 5000 |
Diameter, max. 1) | [mm] | 360 | 800 | 1260 | 1600 | 1600 | 3000 | 3400 |
Journal diameter 6) | [mm] | 6 - 70 | 9 - 140 | 9 - 140 | 12 - 200 | 18 - 280 | 35 - 305 | 35 - 305 |
Saddle size 2) | (Zoll) | 4 | 6 | 6 | 10 | 13 | 20 | 20 |
Saddle insert | (Zoll) | - | - | - | 10 / 8 | - | 20 / 13 | - |
Length, max. | [mm] | 450 | 1380 | 1540 | 2170 | 2435 | 3860 | 4000 |
Machine | ||||||||
Width A 5) | [mm] | 1500 | 2500 | 3500 | 4500 | 5000 | 7000 | 8000 |
Depth B 5) | [mm] | 1000 | 1500 | 2000 | 2500 | 2500 | 3000 | 5500 |
Height C 5) | [mm] | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 |
End-drive 4) | ||||||||
Variable balancing speed, max. | [min -1] | - | - | 1130 | 1340 | 960 | 960 | 2180 |
Drive power | (kW) | - | - | 2.2 | 7.5 | 37 | 55 | max. 250 |
Belt drive 4) | ||||||||
Variable balancing speed, max. 3) | [min -1] | 1140 | 1600 | 1900 | 1600 | 1350 | 2520 | - |
Drive power | (kW) | 0.13 | 2.2 | 2.2 | 7.5 | 22 | 55 | - |
Balancing accuracy 2) | (µ inch) | 10 | 10 | 10 | 10 | 15 | 15 | 15 |
SAE test rotor, weight 7) | [lb] | 11 | 50 | 50 | 50 | 150 | 500 | 500 |
Power requirement | [V] | 230 | 400 8) | 400 8) | 400 8) | 400 8) | 400 8) | 400 8) |
Order No. | R0460100.01 | R0460200.01 | R0460300.01 | R0460400.01 | R0460500.01 | R0460600.01 | R0460700.01 | |
Order No. | R0460101.01 | R0460201.01 | R0460301.01 | R0460401.01 | R0460501.01 | R0460601.01 | R0460701.01 | |
Drive lock | Order No. | - | - | - | R0460402.01 | R0460502.01 | R0460602.01 | R0460702.01 |
Protective enclosure, type C | Order No. | R0460103.01 | R0460203.01 | R0460303.01 | R0460403.01 | R0460503.01 | - | - |
Protective fence, type B | Order No. | - | - | - | - | - | R0460604.01 | R0460704.01 |
SAE test rotor ARP 4162 | Order No. | R0460105.01 | R0460205.01 | R0460305.01 | R0460405.01 | R0460505.01 | R0460605.01 | R0460705.01 |
Report printout equipment | Order No. | R0460106.01 | R0460206.01 | R0460306.01 | R0460406.01 | R0460506.01 | R0460606.01 | R0460706.01 |
2) Corresponding to SAE ARP 4048 | ||||||||
3) With drive diameter 100 mm, from model HL5UB with 200 mm | ||||||||
4) Various drive variants on request | ||||||||
5) Data non-binding, dependent on the respective equipment | ||||||||
6 ) With optional roller bearings | ||||||||
7) Option | ||||||||
8) Power configuration: 3 / PE AC 50Hz 400 V +6 / -10% |
